SKU:96826488

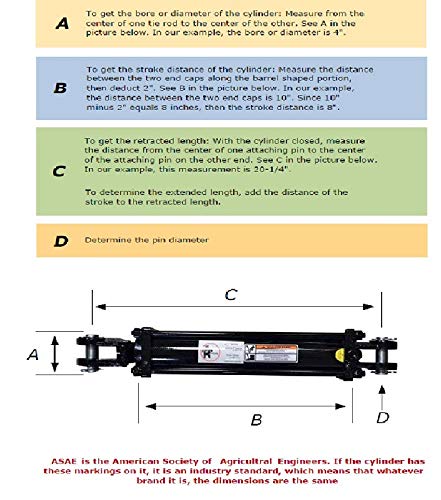

A hydraulic cylinder is a mechanical actuator used to provide unidirectional force through a unidirectional stroke. Hydraulic cylinders are used in almost every industry and are available in a variety of configurations. The two main types of hydraulic cylinders are Tie-rod and Welded. Each of these cylinder types can have unique applications due to their designs. Tie-rod cylinders are usually installed in light to medium duty applications and are generally designed to be repaired or re-packed if necessary. Welded cylinders are designed for most applications and are more complex in design but are generally more difficult to repair due to the welded design. Welded cylinders are typically a better solution due to their compact design and when a more robust design is important in an application. This hydraulic cylinder has a 2.5" bore and a 24" stroke with a retracted length of 34-1/4" and an extended length of 58-1/4". Hydraulic cylinders are constructed from high strength steel and zinc plated for tough conditions on the job or farm. Specifications: Bore: 2.5" Stroke: 24" Rod Diameter: 1-1/4" Retracted Length: 34-1/4" Extended Length: 58-1/4" Pin Diameter: 1" Port Size: 3/8" NPTF PSI: 2500 Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
This hydraulic cylinder has a 2.5" bore and a 24" stroke with a retracted length of 34-1/4" and an extended length of 58-1/4". Hydraulic cylinders are constructed from high strength steel and zinc plated for tough conditions on the job or farm. Specifications Bore 2.5" Stroke 24" Rod Diameter 1-1/4" Retracted Length 34-1/4" Extended Length 58-1/4" Pin Diameter 1" Port Size 3/8" NPTF PSI 2500 Recommended operating temperature range -30 to 105°C (-22 to 221°F)
2524DB
Tie-Rod Hydraulic Cylinder
DB Series
Black
